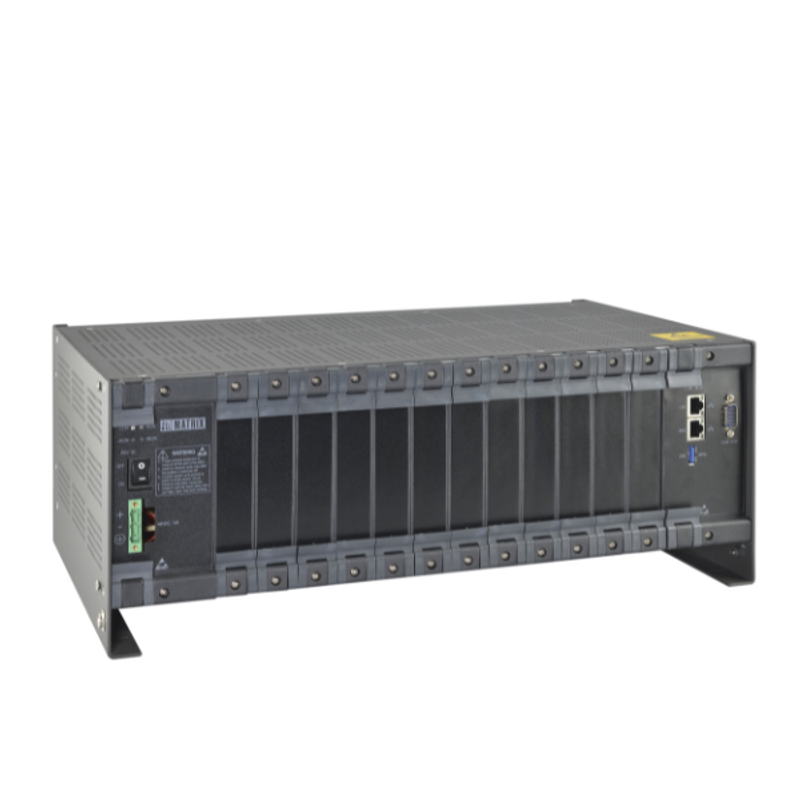

ETERNITY GENX Platform with CPU and Power Supply (DC Power), 12 Universal Slots, Support both IP and Analog Extension with vaious trunk options like CO, PRI, IP & GSM
SKU: Eternity GENX12SDC
Select required product from options below:
Power Supply: DC Power Supply
About Product
ETERNITY GENX12S is the next-generation hardware platform, on which the SARVAM UCS SME server software is hosted. It offers IP at the core with seamless connectivity to the all-pervasive legacy and new-generation advanced wireless telecom networks like POTS, ISDN, T1/E1, and GSM/3G/4G/VoLTE#. The next-generation platform supports up to 99 VoIP (SIP) trunks, 40 GSM ports, 8 T1/E1 ISDN PRI ports, and 64 analog trunks with up to 999 UC users, 96 digital users, and 240 analog users. Both AC and DC power supply options are available.
Key Specs
- SIP Trunks: 99
- System Type: Hybrid PBX
- T1/E1 Ports: 8
- Max. IP Extension: 999
- CO/FXO (TWT) Ports: 64
- Mobile App/Web app: Available
- Digital (DKP) Ports: 96
- GSM/3G/4G LTE Ports: 40
- Max Analog Extension: 240
- Unified Communication Features: Available
Or
Product Specifications
System Resources
System Type
Hybrid PBX
Universal Slots
12
Max Analog Extension
240
Digital (DKP) Ports
96
CO/FXO (TWT) Ports
64
BRI Ports
32
T1/E1 Ports
8
GSM/3G/4G LTE Ports
40
SIP Trunks
99
Max. IP Extension
999
Unified Communication Features
Available
Mobile App/Web app
Available
Maximum participants in Single Conference
21
Group Conference (3-Party)
15
Voice Messages (16 seconds each)
15
Ethernet Ports (Gigabit)
2
Radio Interface Ports
16
E&M Ports
32
Max. Concurrent calls from IP User to other IP User
500
Max. Concurrent calls from IP User to other IP Use
500
PMS Integration
Available
SMS GATEWAY
Available
QSIG
Available
CTI
Available
VOIP
Available
VOIP Protocols
SIP v2, SIP over TCP, Symmetric RTP, RTCP, 100rel/PRACK
Network Protocol
IPv6, IPv4, TCP, UDP, SNTP, STUN, ARP, ICMP, PPP, DNS, SMTP
SIP
Maximum 99 SIP Accounts per System, Out Bound Proxy Support, Display Name, User Name, Password, URL, Proxy URL, Register Interval
VOIP Channels
128/248 VOIP Channels with 2/4 VOIP Daughter-Board Modules
Line Echo Cancellation
G.168 with 64/128ms Tail Length
NAT
STUN and NAT Keep Alive
Voice CODECs
G.711 (A-law, μ-Law), G.723, G.729AB, GSM-FR, GSM-EFR and iLBC
Call Progress Tones
Dial tone, Ring Back Tone, Busy Tone, Error Tone
Fax
T.38 Relay and Pass Through
Quality of Service
SIP QoS and RTP QoS
Security
SRTP/TLS over SIP, MD5 Authentication for SIP, Password Protected Configuration by Admin and User
